How to take apart a minn kota trolling motor. You must follow these steps to dismantle your Minn Kota motor or you will end up breaking it down. These steps are for a 55 foot-pound motor only. Take a marker and mark such that it becomes easy for you to assemble the motor.

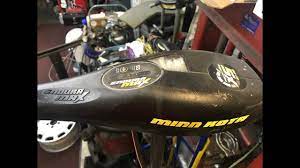

To dismantle a thing easy but to construct an item very hard it is. A friend gave me 2 Minn Kota trolling motors that were weak. So lets take them apart to see if they can be fixed.

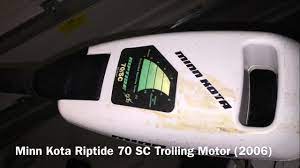

The first one is a Endura Max and the othe. Click the image for more info. You can disassemble the Minn Kota Riptide Trolling Motor easily by following these steps.
You will need a ½ hex socket wrench to take off the end-cap of your propeller. This step will require some effort so just hold on to the propeller head and twist until the. Remove the red and black wires from the motor off of the marine battery.
Unscrew the small set-screws on the motor housing found along the top of the Minn Kota motor. Refer to the user manual for the exact location for your model. Set the screws aside.
Pull the plastic housing top off the motor. About Press Copyright Contact us Creators Advertise Developers Terms Privacy Policy Safety How YouTube works Test new features Press Copyright Contact us Creators. How to remove a Minn Kota Trolling motor - YouTube.
Motor runs intermittently cuts in and out fails to run in either forward or reverse or kicks from forward into reverse. Check to ensure proper voltage and polarity at battery red black -. Inspect all battery connections trolling motor plug if installed and any.
There may be a roll pin going through it you will need to remove this pinApply heat to the housing where the shaft screws in before you try to unscrew it more than likely there is locktite on the threads. Posted byminn kotaat302 AM. The autopilot allows your trolling motor to steer on its own in the set direction.
It uses a compass to keep a steady heading and can be used in many ways for example trolling along a shoreline a ledge or shelf. Minn Kotas autopilot makes automatic corrections for wind waves and current. I-Pilot or i-Pilot Link.
Removing the armature in a Minn Kota trolling motor It will stay put. Turn it upside down and use the weight if the armature to help pull it down and out. I will caution you the hardest part of putting everything back together is keeping the brushes held outward when replacing the armature.
As you begin this project make sure to have a towel ready to clean the housing from obstructions that have entered the housing through use. Make sure to disconnect the trolling motor from any battery terminals. This repair is necessary to have a fully functional propeller.

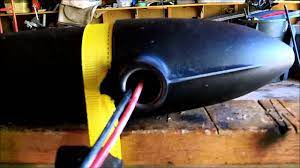

The tools needed are needle nose pliers or vice grips. Quite easy to do just remove the top cover then theres two wires going down thru the shaft to the motor which youll need to remove and then theres just the screw pinning the head to the shaft. Once you have the motor and shaft off it just a matter of pushing the wires down the shaft past the point you want to cut it off at.
Most Minn Kota trolling motors including the Terrova Ulterra and Ultrex have no break-away mount that would protect the shaft in case of hard impact. That is unfortunate and most likely due to the design of the electric-steer mechanism because the cable-steer Fortrex and Maxxum both have break-away mounts. This is a small plastic boat that basically takes any regular trolling motor on the back but you take it apart cap the shaft and move the controls to the center of the boat.
Ive done two trolling motors now. Based on those two motors once you take off the top the wires usually unplug from the rheostat in the motor head. Definitely try cleaning it first.
If you take it apart and manually press down on the connection when attached to the trolling motor you will easily know if it is a circuit board issue or needs to be cleaned. These pedals are pretty crappy from my experience as Ive had to circuit boards go out in 5 years. On my third pedal.
