How to adjust trim tab on outboard motor

There will be a series of four or five holes in the bracket for this pin which determines the running angle of the outboard see your owners manual for adjustment. With respect to the rest of the lower unitleg.

Rotate the tab in small increments in the appropriate direction then firmly tighten the bolt.

How to adjust trim tab on outboard motor. If it turns in the opposite direction to the propeller rotation it needs more tab angle and vice versa. After this use a screwdriver to remove the anti-ventilation plug from the top on a stationary boat. Then securely hold the trim tab in position and loosen its bolt.

Give the tab rotations in the right direction and then tighten it firmly. Stop the boat to adjust the tabRemove the plug on top of the anti-ventilation plate with the screwdriver to gain access to the trim tab bolt. Hold the trim tab firmly in position by hand and loosen the trim tab bolt.

Rotate the tab in small increments in the appropriate direction then firmly tighten the bolt. Hold the trim tab firmly in position by hand and loosen the trim tab bolt. Rotate the tab in small increments in the appropriate direction then firmly tighten the bolt.

Reinstall the plug and test drive the boat again. Observe the boats handling and make further adjustments as needed. This is where trim tabs come in.

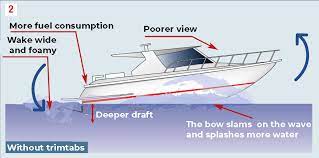

Trim tabs are optional fins that rest on the back of boats with outboard motors to adjust the angle of the bow while you accelerate. Keep in mind if you do not have power trim tabs you can still manipulate the angle of the bow the same way by adjusting the motor and stabilizing trim. Turning the read of the tab will force the rear of the motor or drive unit to go in the opposite direction of the rear of the tab.

To change the tab position this can be done in the water directly over the tab is a small plastic cap. Remove it and you will find a bolt. Which way to adjust trim tab.

Typically if the boat pulls to right then moving trim tab to the right standing behind motor will help correct. Since the boat is new to you did you have it trimmed up after getting on plane. Some times proper trim will almost eliminate steering wheel torque.

If that is what you want to do first set the trim tab in the center and lock it down. Then take your boat up to your normal cruise engine rpm and engine trim setting. Then loosen your grip on the steering wheel and see if the boat wants to go starboard or port.

If it stays straight- great you are set. To adjust the trim tab loosen the securing bolts as per the engine manufacturers instructions and move the trim tab in the direction the boat pulls. For example if the boat pulls to starboard move the trailing edge of the trim tab to starboard.

Make these adjustments in small increments and test the results. If your boat is pulling to the left then you want to slowly and carefully move the trim tab to the left only slightly. Its important to move the trim tab to either direction depending on your pull direction in small increments.

Tighten the bolts back up and make sure they are nice and tight. Yes you can change the trim tab slightly 1-2 degrees but I have experienced exceptionally fast deterioration of the trim tabs mine are zinc tabs on both of my motors when they were more than 1-2 degrees from inline or centerline position. With respect to the rest of the lower unitleg.

This one is for the manual tilt small engine folks. Most outboard engines 30 hp and below do not have power tilt and trimThey usually have 5 holes into which a pin can be inserted varying the angle of the engine relative to the transom of the boat. They also have a bracket that can be flipped down to prop the engine up at around a 45 degree angle for operating in shallow water at slow speeds.

Quick 60-second overview of adjusting the trim tab on a Van Horn Aviation 206B main rotor blade. Demonstrates how to use the VHA trim tab zeroing tool dial. Turn the tab as far left port as it will go.

2 Go for a test drive. When on plane trim motor out until it cavitates slightly then trim in little until it stops. Remember you are not supposed to be driving the boat with the motor completely trimmed in hard against the boat whilse on plane.

If still a problem. Boats powered by smaller outboards may not have a power trim system but the trim can still be adjusted manually by moving a pin in the motor bracket. There will be a series of four or five holes in the bracket for this pin which determines the running angle of the outboard see your owners manual for adjustment.

Tony – Good question. Think of the trim tab not as a rudder but as a rudder for the rudder the outboard gearcase itself. Most outboard powered boats will tend to steer to port or starboard due to the asymmetrical blade loading on the propeller caused by the motor being trimmed in or out.

Use the trim down button typically located on the handle of the throttleshift lever to trim the motor to the fully down position. With the motor at idle you can usually hear the whine of the hydraulic motor change when the fully down position is reached. Loosen the retaining bolt and move in the direction that the engine pulls ie if it pulls to the right move tab to the right.

This may require more than one adjustment to get desired effect. Now that you know how to install trim tab anode on Yamaha outboards an outboard trim tab anode adjustment only requires a loosening of the retaining bolt and adjusting according to the hash marks. Simply adjust the trim tab in the direction it is misaligned if your boat steers too much to the starboard side adjust the trim tab right.

Vice versa for port-side steering. Trim refers to the angle of the propeller shaft relative to the boat. When the boat is stationary and the shaft is parallel with the surface of the water thats known as neutral trim.

The prop shafts angle is important because it directs the power from the engine. Changing this angle changes what direction the boat is pushed. Run the boat up to speed again and see how much difference the adjustment made.

If it still isnt running straight repeat the above step adjusting the tab appropriately. Mount an add-on tab if necessary. Add-on trim tabs are designed to attach to the skeg of an outboard motor when no factory-installed tab is available.

Tilt is the mechanism that allows the outboard motor to tip radically forward far enough to raise the part of the motor below the actual engine called the lower unit as well as the propeller to the surface or completely out of the water. Tilting the motor up and down is usually done with the motor.
